Super-Efficient Microcomb Technology

Breakthrough photonic molecular architecture delivering >60% conversion efficiency for next-generation optical interconnects

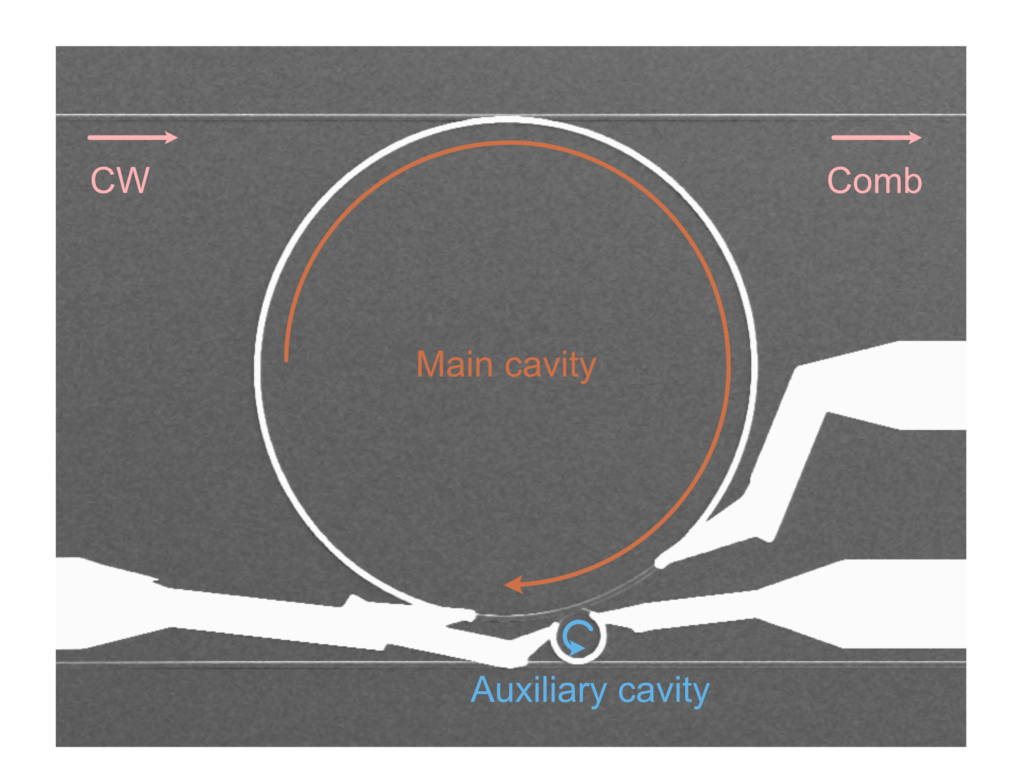

Photonic Molecular Architecture

Our patented super-efficient microcomb technology revolutionizes multiwavelength laser systems with unprecedented efficiency and reliability

Revolutionary Efficiency Breakthrough

Our photonic molecular design enables coherent multiwavelength generation with minimal power consumption, achieving >60% conversion efficiency compared to the industry standard of less than 5%. This can match or exceed mode-locked lasers with wall-plug efficiencies of 11%-15%.

  • 10x Better Efficiency than soliton microcombs
  • 100+ Wavelength Channels from a single laser
  • Silicon Nitride Platform with Q-factor > 10 million
  • 25+ Year Reliability with stable operation

Technical Specifications

Industry-leading performance metrics that redefine what’s possible in optical communications

Feature
Solinide
Soliton Microcombs
Laser Arrays

Conversion Efficiency

>60%

<5%

20-30%

Number of Wavelengths

100+

100+

Limited

Power per Line

>1mW

<0.1mW

>1mW

Thermal Stability

Excellent

Excellent

Poor

Spectral Uniformity

<4dB

~10dB

<4dB

Total Power Consumption

<2W

~5W

~4.5W

CMOS Compatible

Yes

Yes

No

Feature
Solinide
Soliton Microcombs
Laser Arrays

Wall-Plug Efficiency

45%

<5%

10%

Number of Wavelengths

100+

100+

Limited

Power per Line

>1mW

<0.1mW

1mW

Thermal Stability

Excellent

Good

Poor

Spectral Uniformity

<5dB

~10dB

<5dB

Total Power Consumption

<1W

~5W

~10W

CMOS Compatible

Yes

Yes

No

Products

SpectraGrid

Pluggable OSFP ELS for high-speed optical links

Learn more

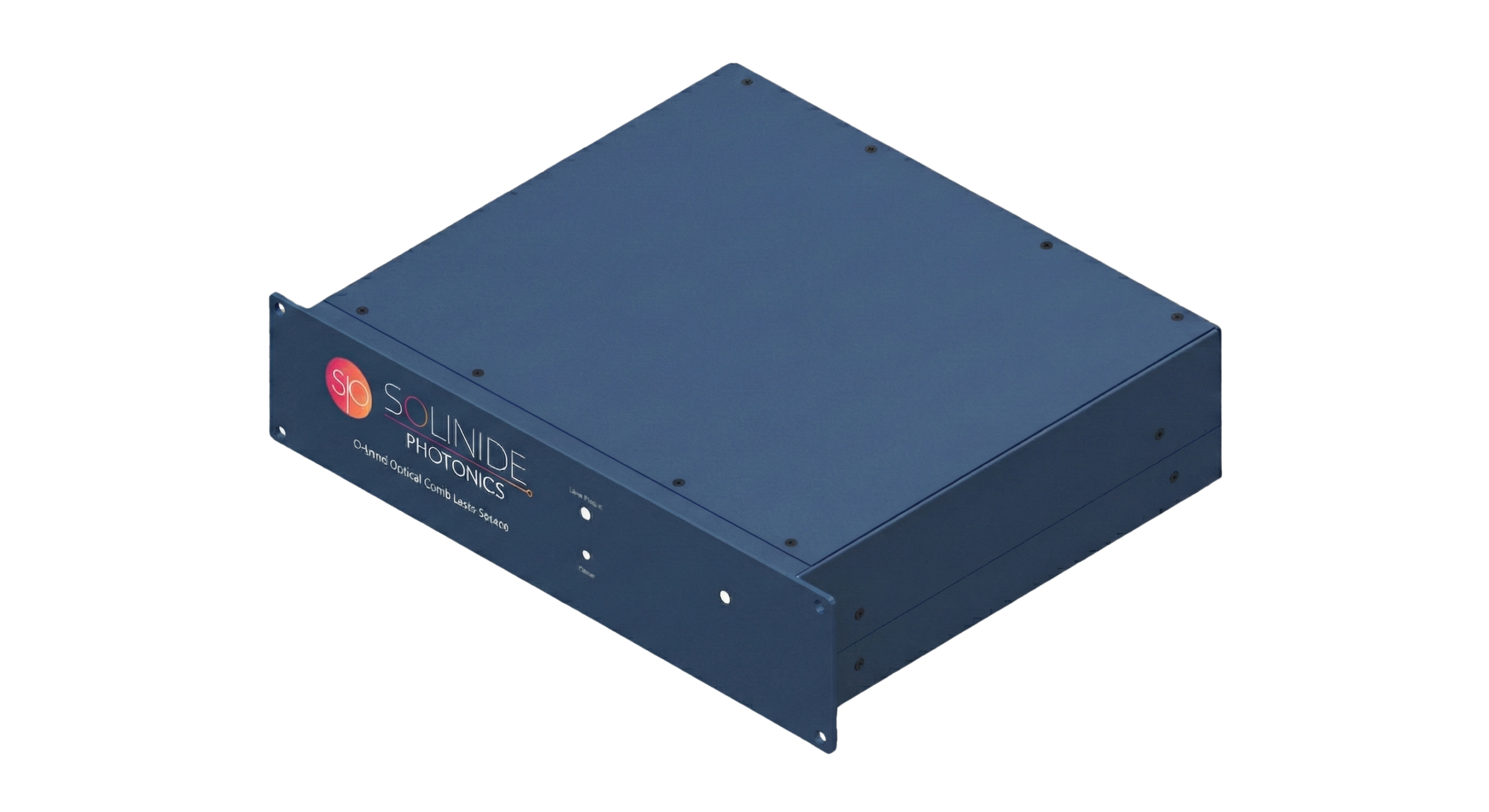

19″Comb Rack

Turn-key operatable comb source

Learn more

Publications

World-leading research backed by strong intellectual property

PUBLICATION

Photonic molecules for ultraefficient microcombs

Helgason et al., Nature Photonics 17, 992 (2023)

Read paper

PUBLICATION

Wafer-scale photonic molecules with high yield

Girardi et al., Optics Express (2025)

Read paper

Silicon Nitride Photonics Solving Critical Infrastructure Challenges

From hyperscale datacenters to quantum networks, Solinide’s 60%+ optical efficiency enables next-generation computing and telecommunications infrastructure.

Hyperscale Datacenters

Powering the World’s Largest Digital Infrastructure

Learn more

AI Infrastructure

Enabling Exascale AI Training and Inference

Learn more

5G/6G Networks

Future-Proofing Mobile Network Infrastructure

Learn more

Quantum Communications

Building the Quantum Internet

Learn more

Edge Computing

Bringing Datacenter Performance to the Edge

Learn more

HPC Clusters

Breaking the Petaflop Interconnect Barrier

Learn more

One Platform. Multiple Breakthrough Applications.

Solinide’s silicon nitride photonics technology delivers transformative efficiency gains across the entire digital infrastructure ecosystem. Our 60%+ optical conversion efficiency, a 10x improvement over silicon photonics, translates directly to:

Reduced Capital Expenditure

Higher performance per watt means fewer servers, switches, and cooling systems to achieve the same computational throughput.

Lower Operating Costs

Dramatically reduced power consumption and cooling requirements cut datacenter OPEX by up to 10%.

Increased Deployment Density

Lower thermal output enables higher rack density, improving datacenter space utilization and reducing real estate costs.

Extended Equipment Lifespan

Reduced thermal stress on components increases MTBF and lowers replacement cycles.

Faster Time-to-Market

Standards-compliant packaging and integration flows minimize design-in time for OEMs and system integrators.

Future-Proof Architecture

Platform scales from today’s 800G requirements to tomorrow’s multi-terabit demands without fundamental redesign.

Frequently Asked Questions

Photonics molecules offer 60%+ optical conversion efficiency compared to 5-10% for traditional Kerr combs, a 10x improvement. This efficiency translates directly to lower power consumption, reduced cooling costs, and higher deployment density. Additionally, silicon nitride’s ultra-low propagation loss (<0.1 dB/cm) saves more photons, critical for quantum applications.

Our technology has been validated in field trials with NVIDIA, and other Tier 1 Telecom suppliers. We’re currently in the pre-production phase, working with early adopter customers to finalize integration requirements and scale manufacturing processes. Our MPW (Multi-Project Wafer) service enables rapid prototyping for qualified customers.

Integration timelines vary based on application complexity but typically range from 6-12 months from initial engagement to first silicon. We provide comprehensive design support, reference designs, and packaging consultation to accelerate time-to-market.

Yes. Our platform supports custom channel spacing, wavelength selection, and modulation formats across visible to near-infrared wavelengths. We work closely with customers to optimize configurations for specific applications—whether that’s AI interconnect, quantum communications, or telecom transport.

Our silicon nitride platform is uniquely suited for both. For classical applications (datacenter, AI, HPC), we deliver 10x efficiency improvements. For quantum applications, the ultra-low loss and broad wavelength support enable room-temperature quantum circuits that will support the future quantum economy.

Ready to Transform Your Infrastructure?

Whether you’re architecting hyperscale datacenters, building AI supercomputers, or deploying 6G networks, Solinide’s silicon nitride photonics delivers the efficiency breakthrough that makes exponential scaling economically viable.


Our team brings decades of experience in photonic integration, datacenter architecture, and telecommunications infrastructure. We work closely with forward-thinking organizations to validate our technology in real-world deployments.
